XKC-Y27C Thin Small Tubes Contactless Liquid Level Sensor for Infusion Tubes/Physic Liquor Detect/UV Printer/Coffee Machines
XKC-Y27C Thin Small Tubes Contactless Liquid Level Sensor for Infusion Tubes/Physic Liquor Detect/UV Printer/Coffee Machines
Regular price
$5.88 AUD
Regular price
$5.88 AUD
Sale price
$5.88 AUD
Unit price
per
Couldn't load pickup availability
SPECIFICATIONS
Brand Name: XINGKECHUANG
Choice: yes
Hign-concerned Chemical: None
Material: Polymer
Model Number: XKC-Y27C
Origin: Mainland China
Output: Switching Transducer
Theory: Capacitance Sensor
Type: Humidity Sensor
Usage: Level Sensor
is_customized: Yes
semi_Choice: yes
1、Model selection
D4、D6、D8、D10=Tube size
XKC-Y27C=Waterproof belt line
2、Product parameter
Current consumption ：3.5mA
Input voltage (Vin) ：5~24(V)
output method：High and low level/ NPN
Output current：≤1A
Response time：500mS
Working temperature ：-20~85℃
Conduit Dimensions：
Outer diameter D3=3mm , D4=4mm , D6=6mm , D8=8mm , D10=10mm .
humidity ：5%~80%(no frosting)
material ：PC V0 fireproof material
Safety standard certification ：CE
Environmental certification ：ROHS-2.0

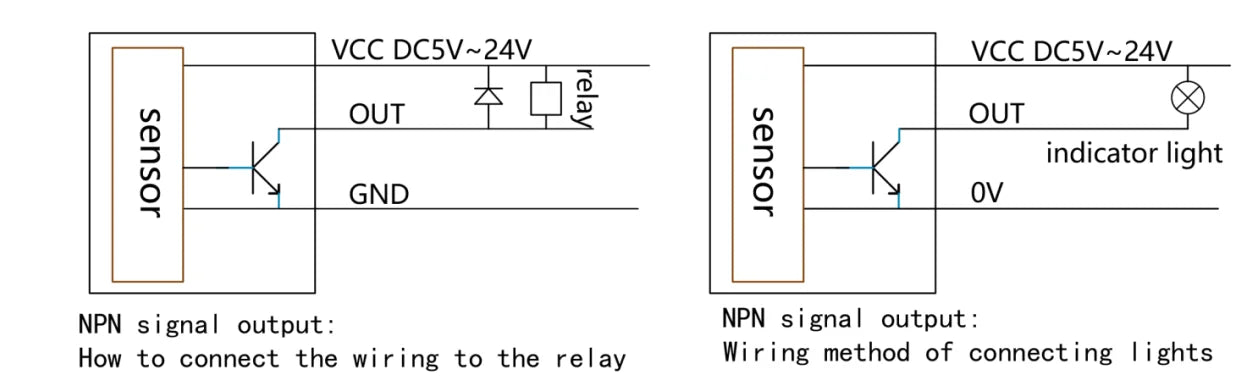

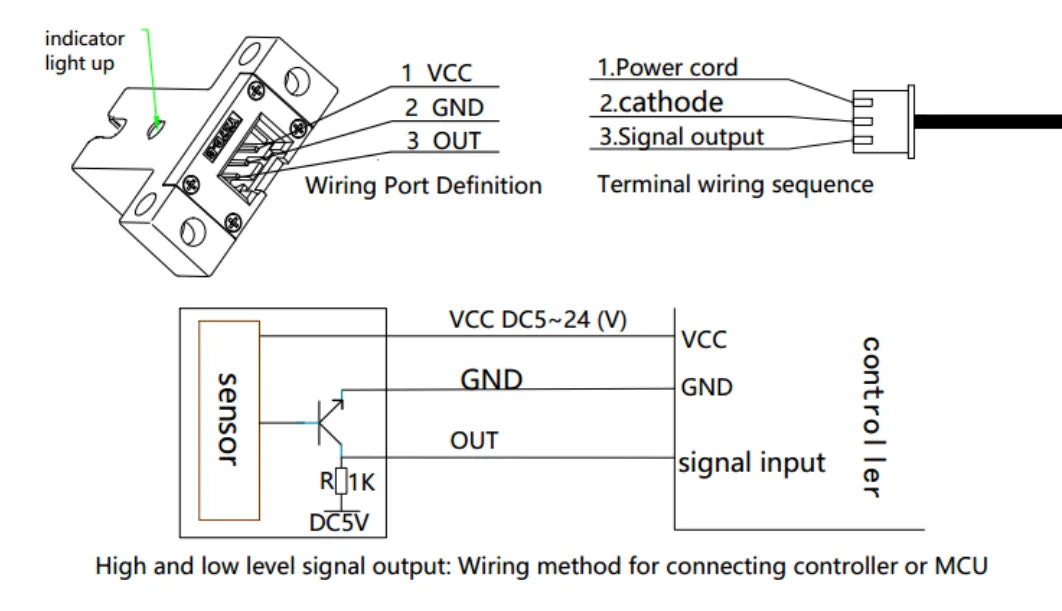

3、hookup
4、installation instructions

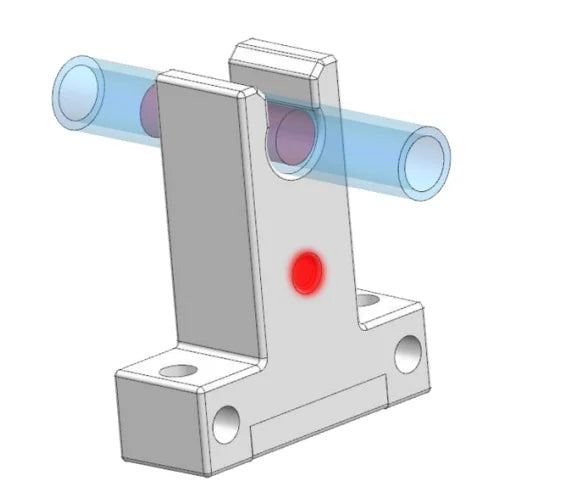

In the picture above, there is liquid in the water
pipe at the detection level, and the indicator
light is on

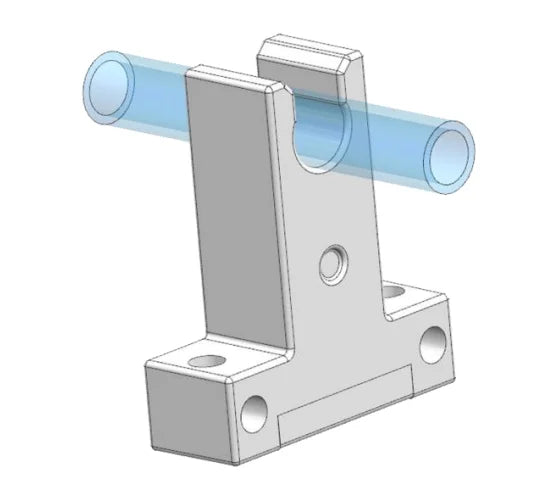

In the picture above, there is no liquid in the
water pipe at the detection level, and the
indicator light does not light up

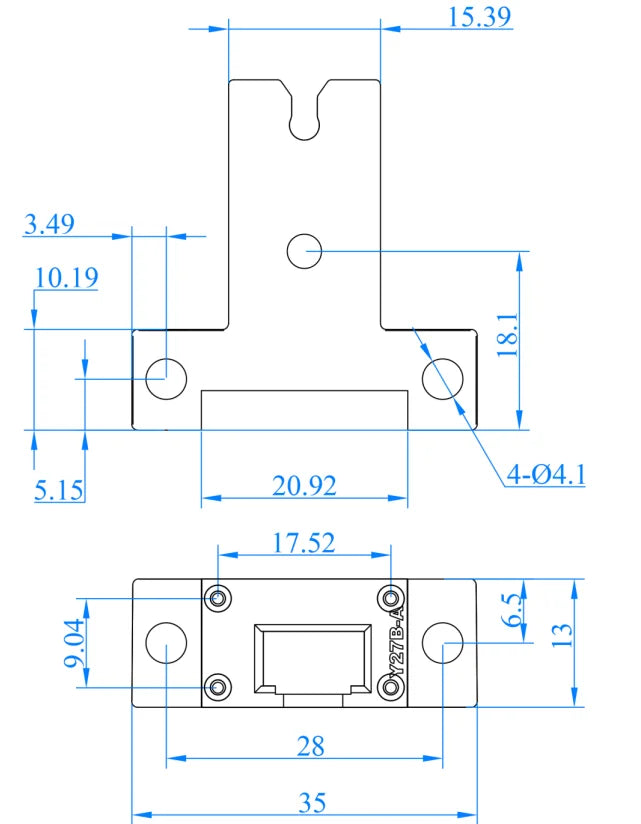

5、outline dimension
